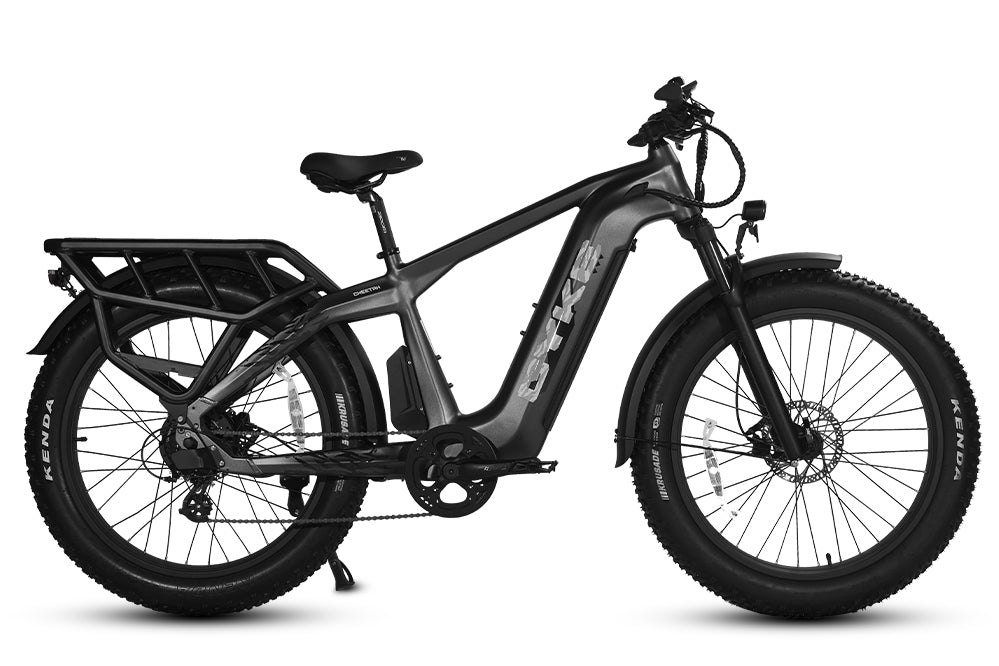

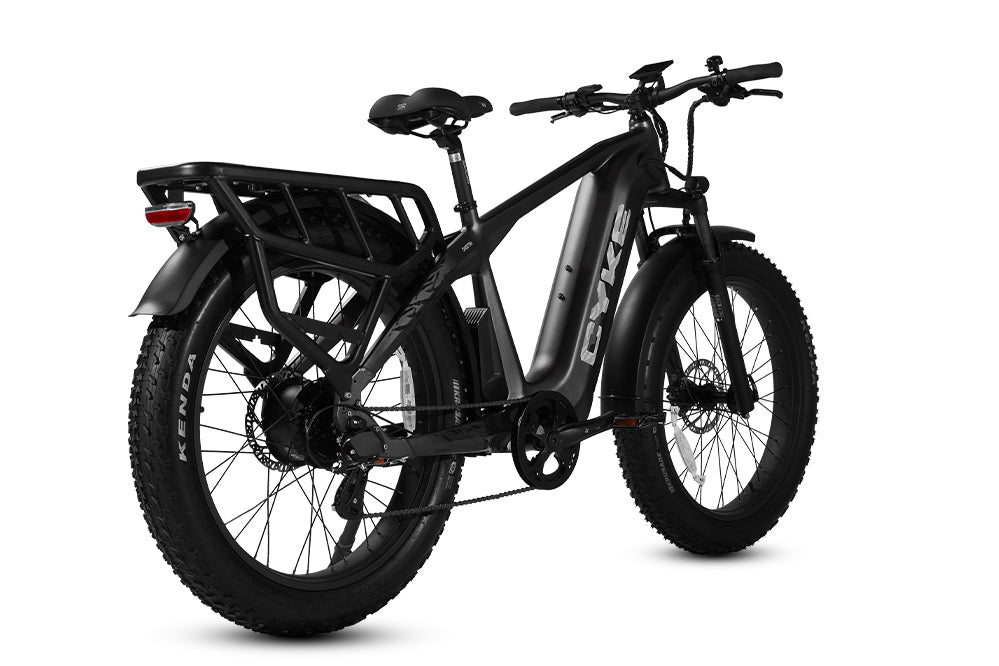

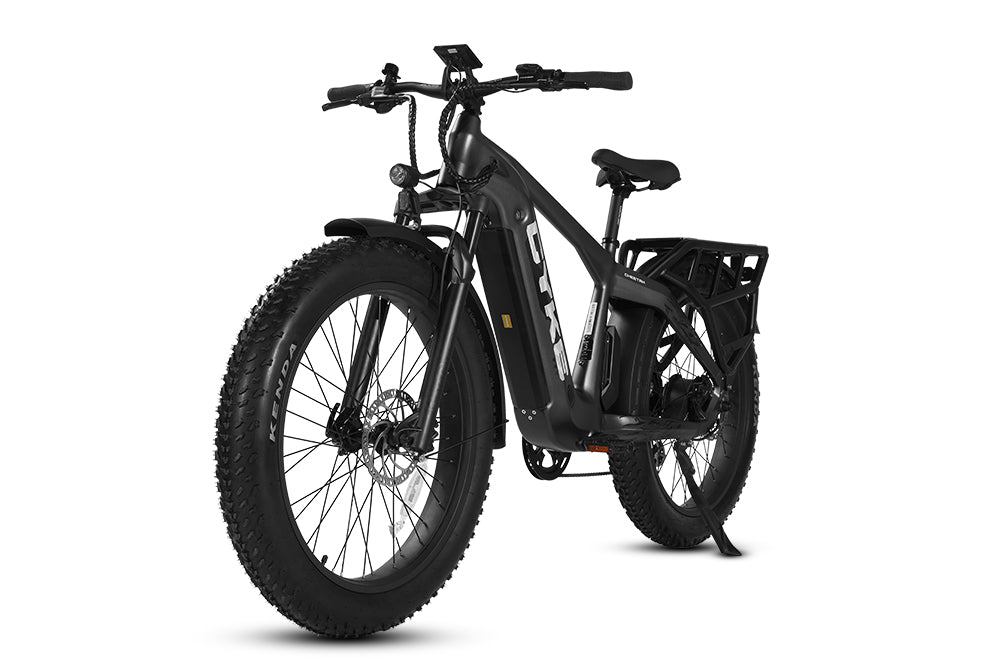

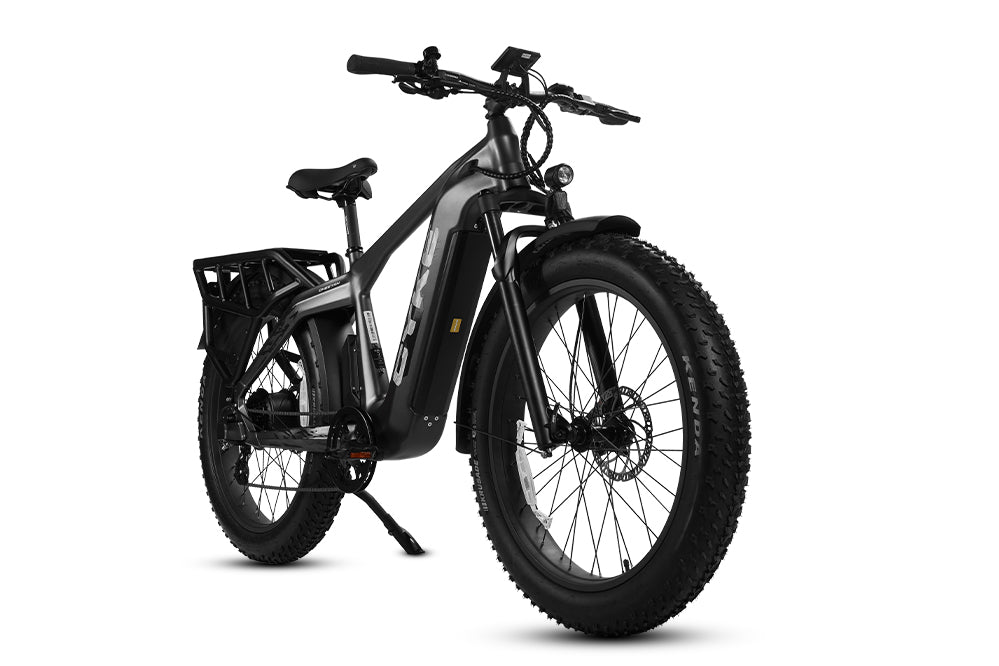

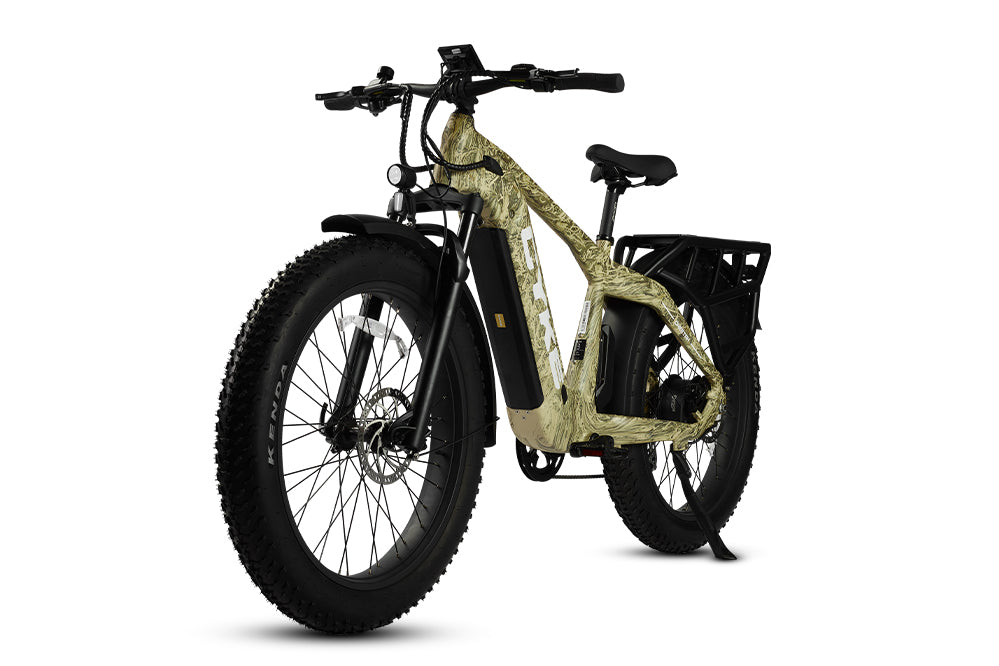

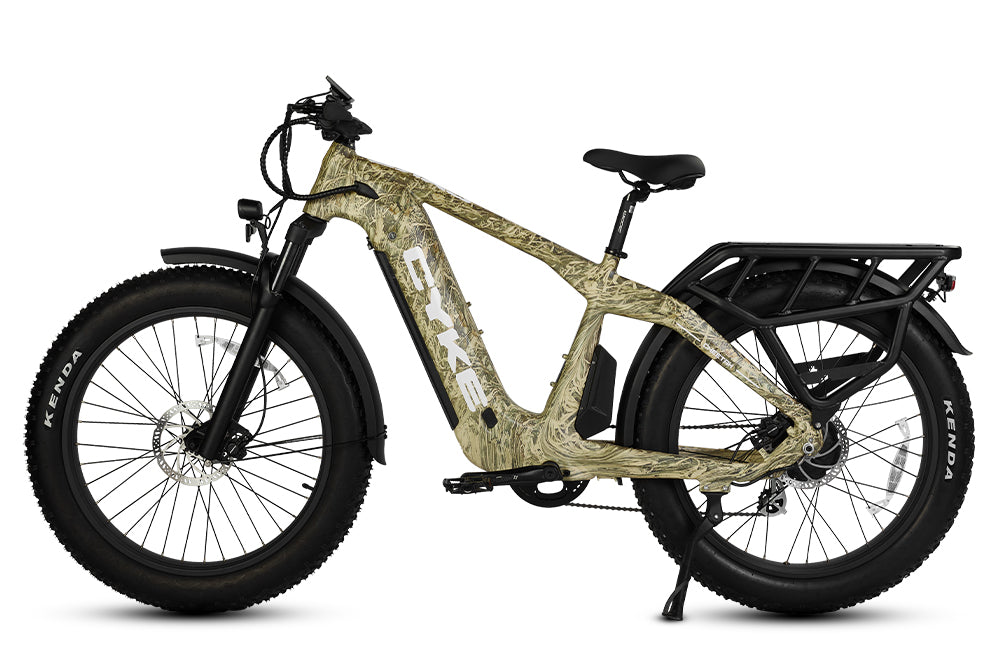

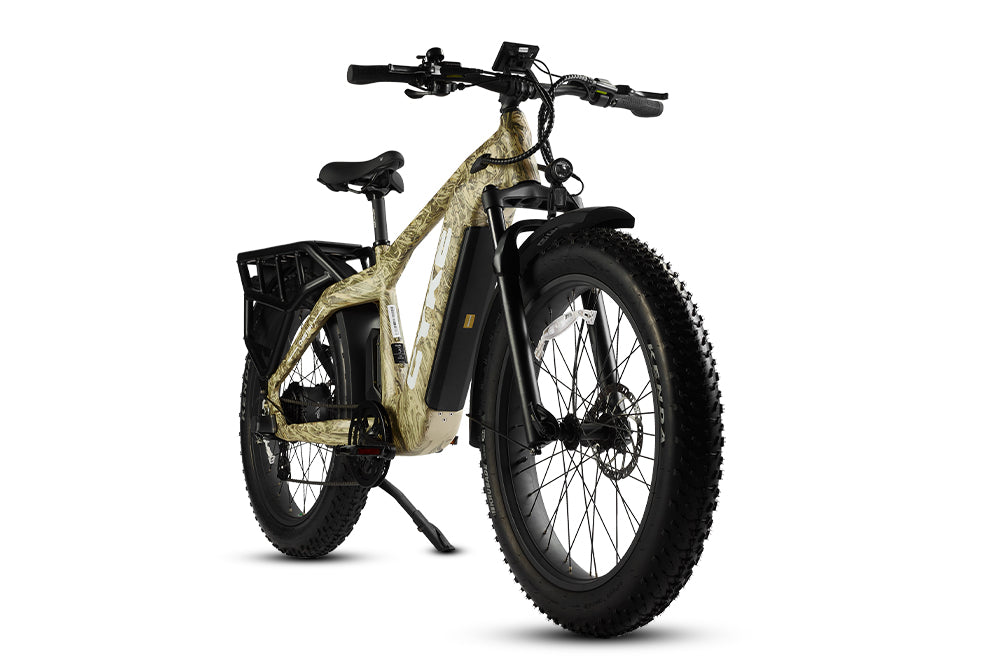

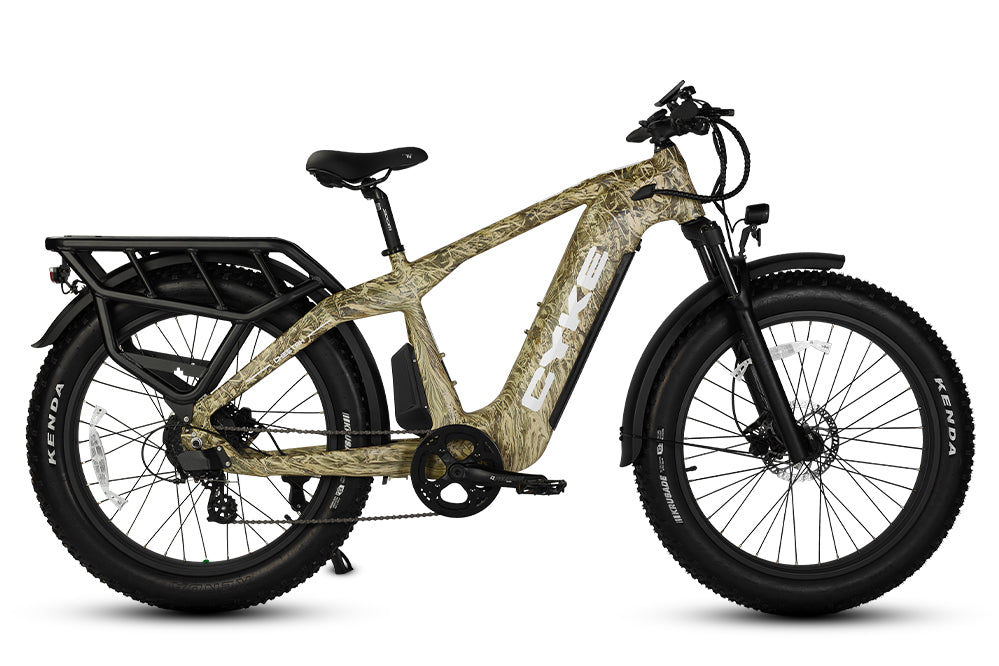

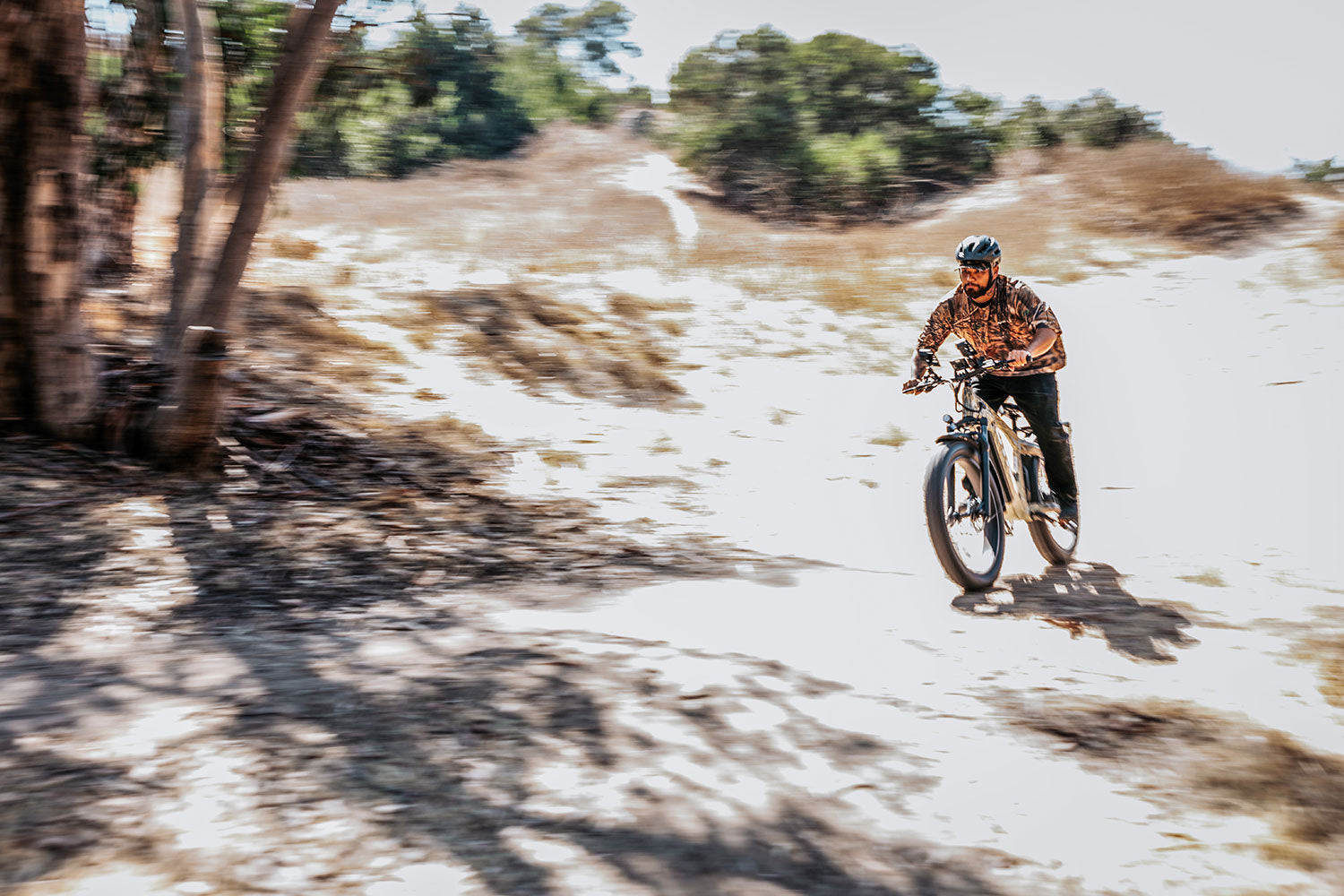

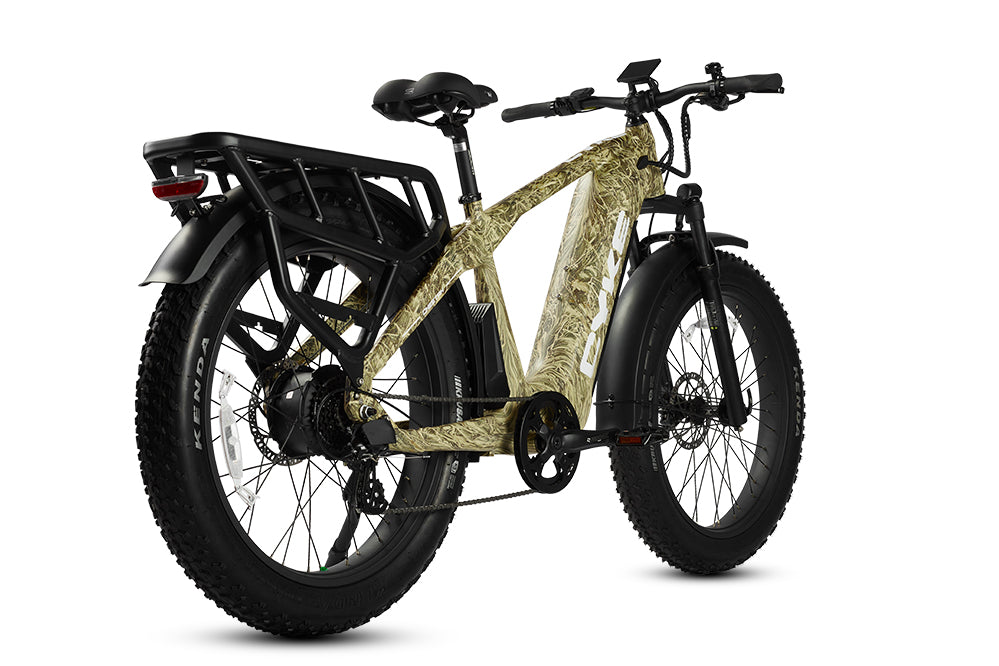

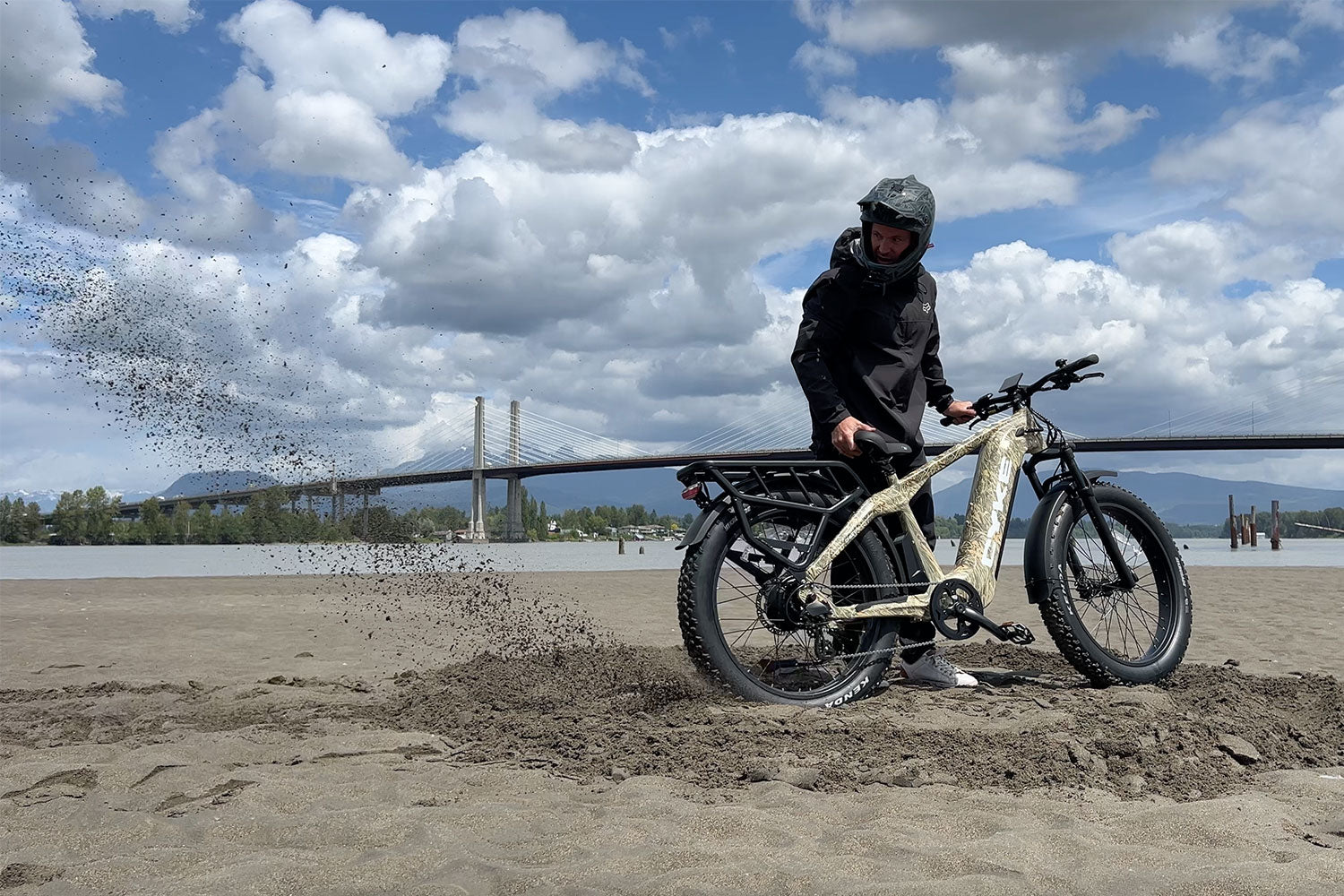

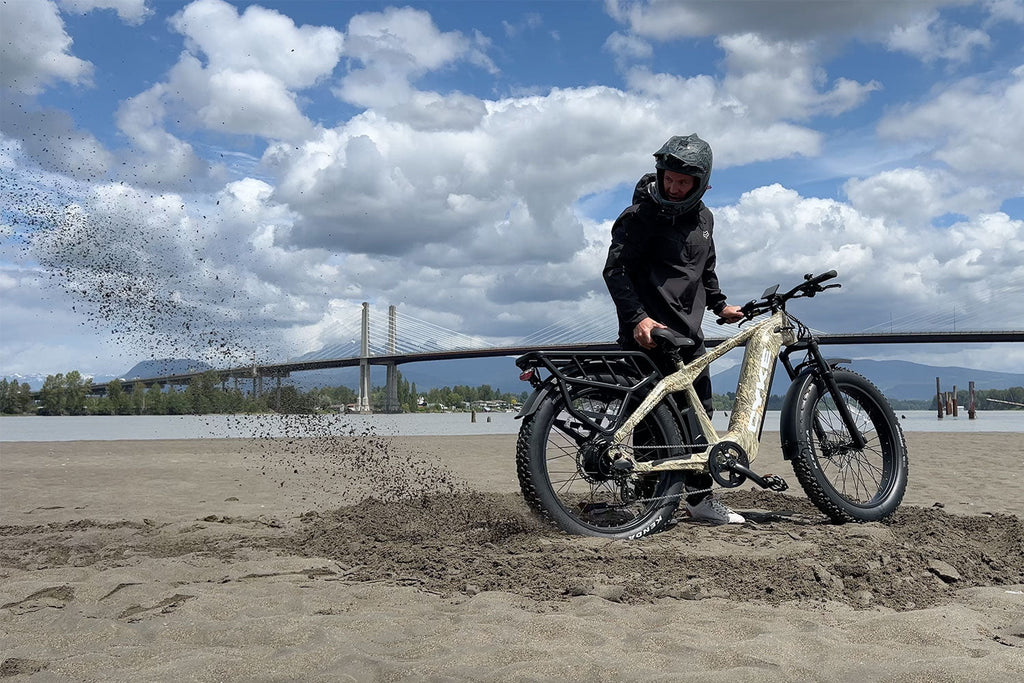

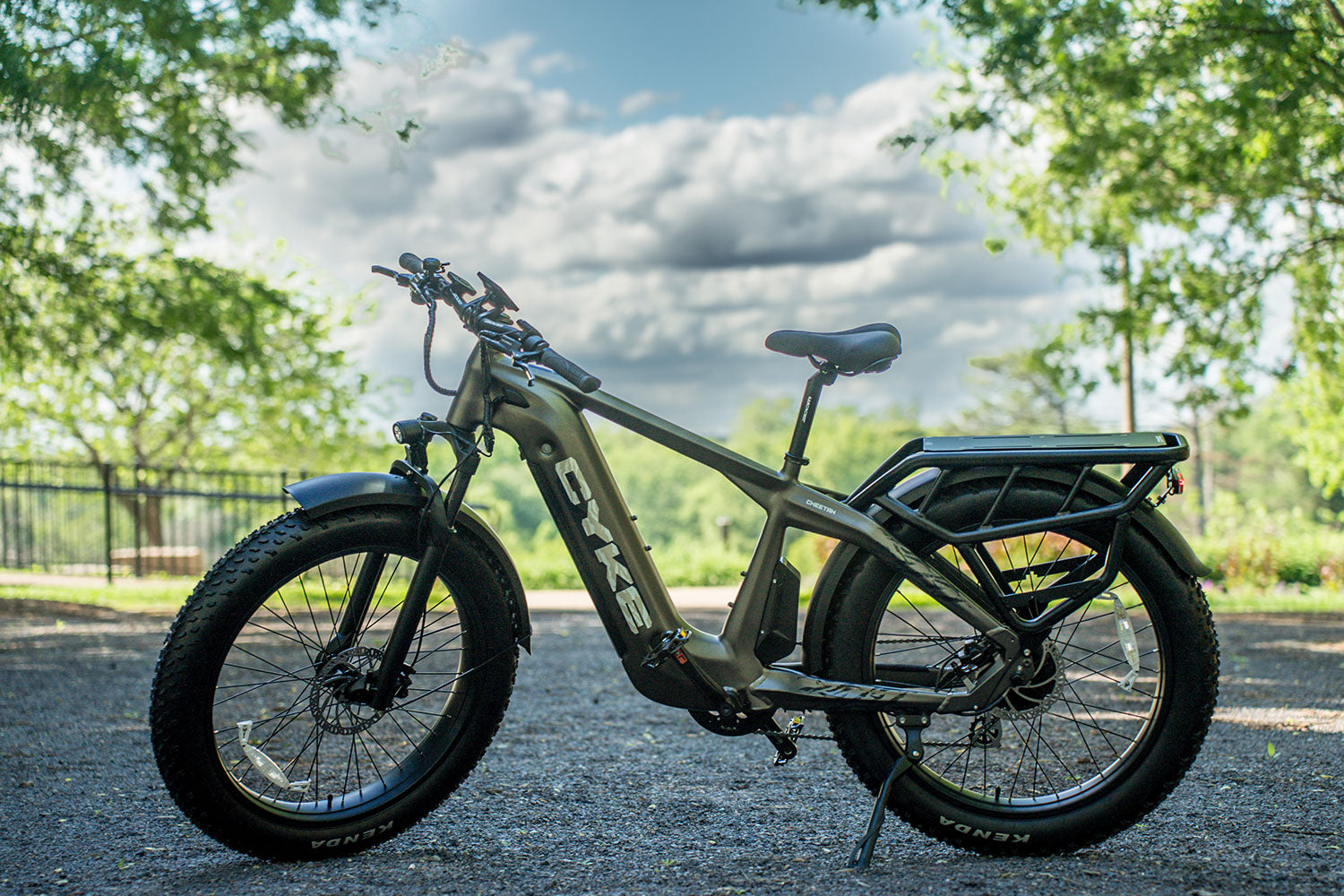

Equipped with 26" fat tires and capable of carrying a maximum weight of 450 lbs, the Cheetah eBike is ideal for hunting and various outdoor activities.
Incredibly Durable: Made from 6061 aluminum alloy, this e-bike ensures a smooth and secure ride while supporting loads of up to 450 pounds. Extended Range Battery: Featuring a 960Wh battery, it can cover distances of up to 100 miles, making it an excellent companion for extended hunting trips. Harness a 750W BAFANG motor for your hunting adventures: Stay focused on your hunt without being distracted by the ride. This powerful motor enhances your hunting experience, allowing you to conserve energy. 105 Adaptive Ride Settings: With 105 ride settings that automatically adjust to your physique and riding style, you can enjoy a comfortable ride.
Product Specifications
E-bike System
| Battery |
48V/20Ah, 960Wh Lithium-ion battery with LG cells |
| Motor |
BAFANG 750W rear hub motor, 85 Nm of torque |
| Range |
Up to 100 miles (with a 75kg load in ECO mode). The actual range varies depending on the weather, load, road conditions, etc. |

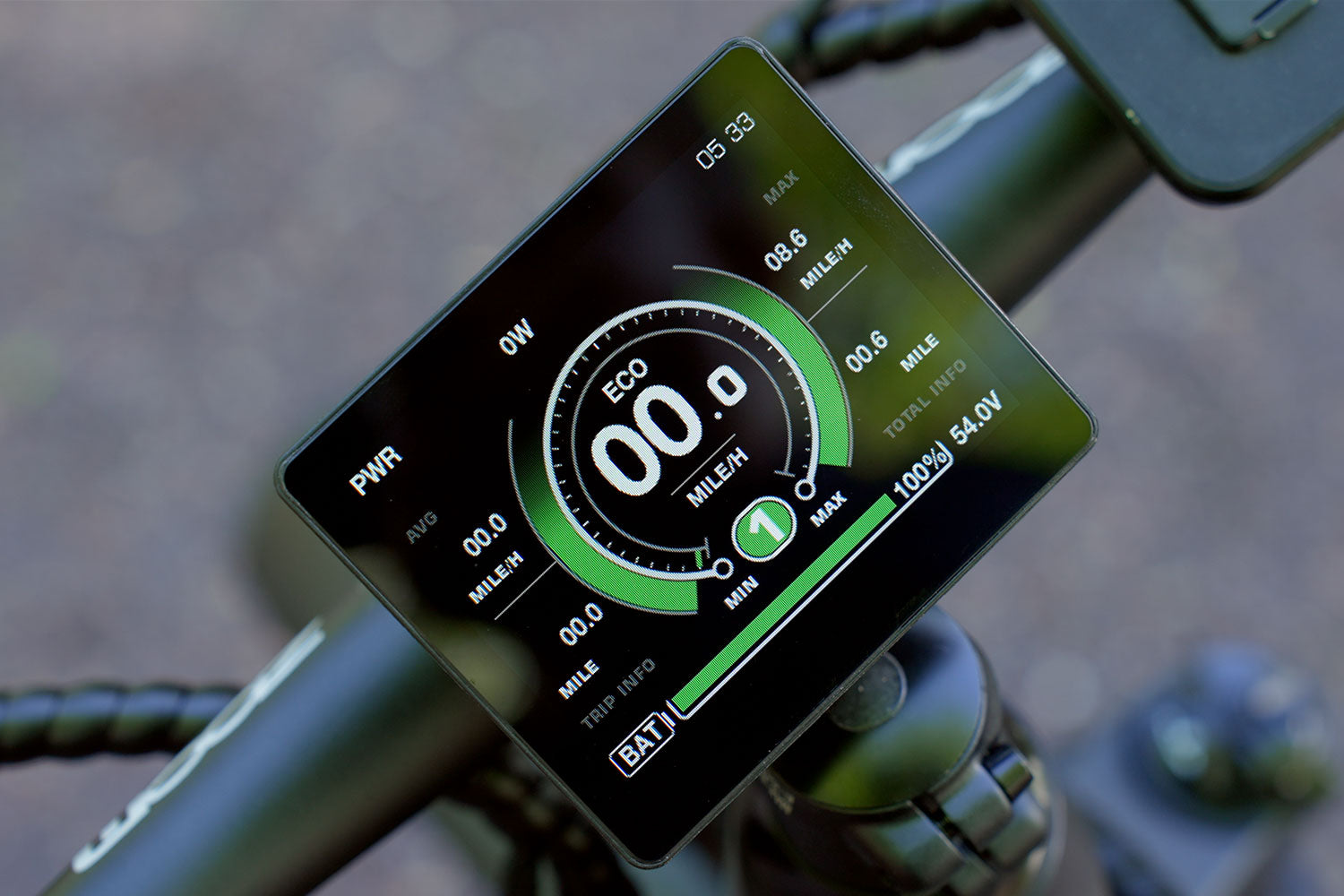

| Display |
3.5" color matrix HMI display |
| Charger |

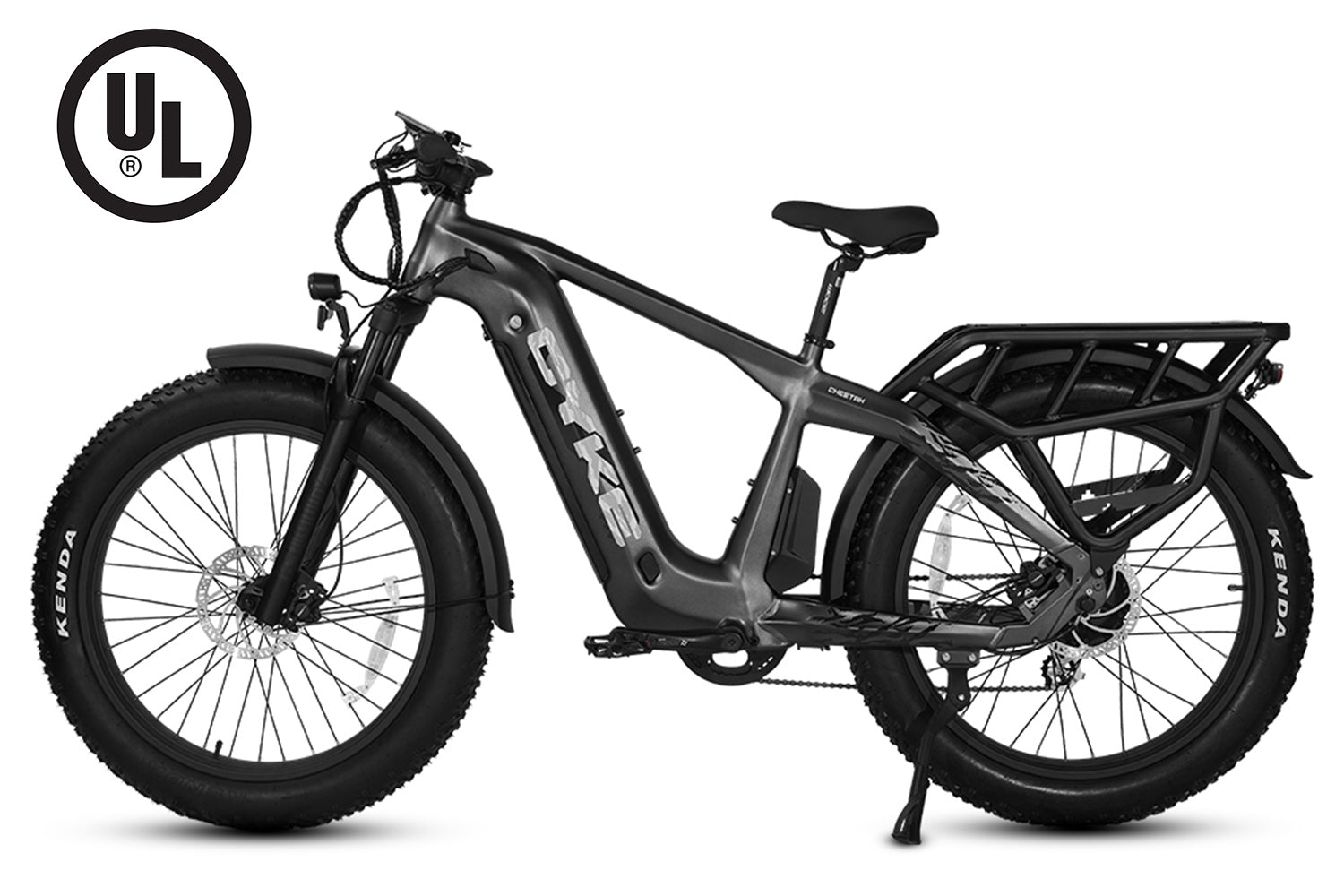

Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A. UL Listed |
| Charging Time |
Approx. 6-7 hours |
| Pedal Sensor |
Cadence sensor |
| Max Speed |
28 MPH both in pedal-assist and throttle modes |
| Throttle |
Thumb throttle |
| Pedal Assist Modes |
5 Levels |
Frameset
| Frame |
Aluminum alloy |
| Fork |
RST front suspension fork, 95mm travel |
Wheels
| Rim |
Aluminum ring, 12G 36H AV, 585 x 85mm |
| Tire |
KENDA 26x4.0" fat tires |
| Front Hub |
12G 36H |
| Spoke |
Black stainless 12G, 250mm Front, 190mm Rear |
Drivetrain
| Shifter |
Shimano 8-speed |
| Rear Derailleur |
SHIMANO ALTUS 8-speed |
| Cassette |
SHIMANO HYPERGLIDE |
| Crank Arm |
42ED, 170mm |
| Pedal |
Aluminum alloy |
Components
| Saddle |
Black nubuck leather |
| Seatpost |
Forged Alloy, Ø30.4*350mm |
| Stem |
Bar bore: Ø31.8mm; Clamp I.D.: Ø28.6mm |
| Handlebar |
Flat Bar, Aluminum Alloy Ø31.8mm, Width 780mm |
| Grips |
140mm black grips |
| Brakes |
TEKTRO hydraulic disc brake |
| Brake Rotor |
180mm brake rotor |
| Front Light |
40 LUX headlight |
| Taillight |
Brake light |

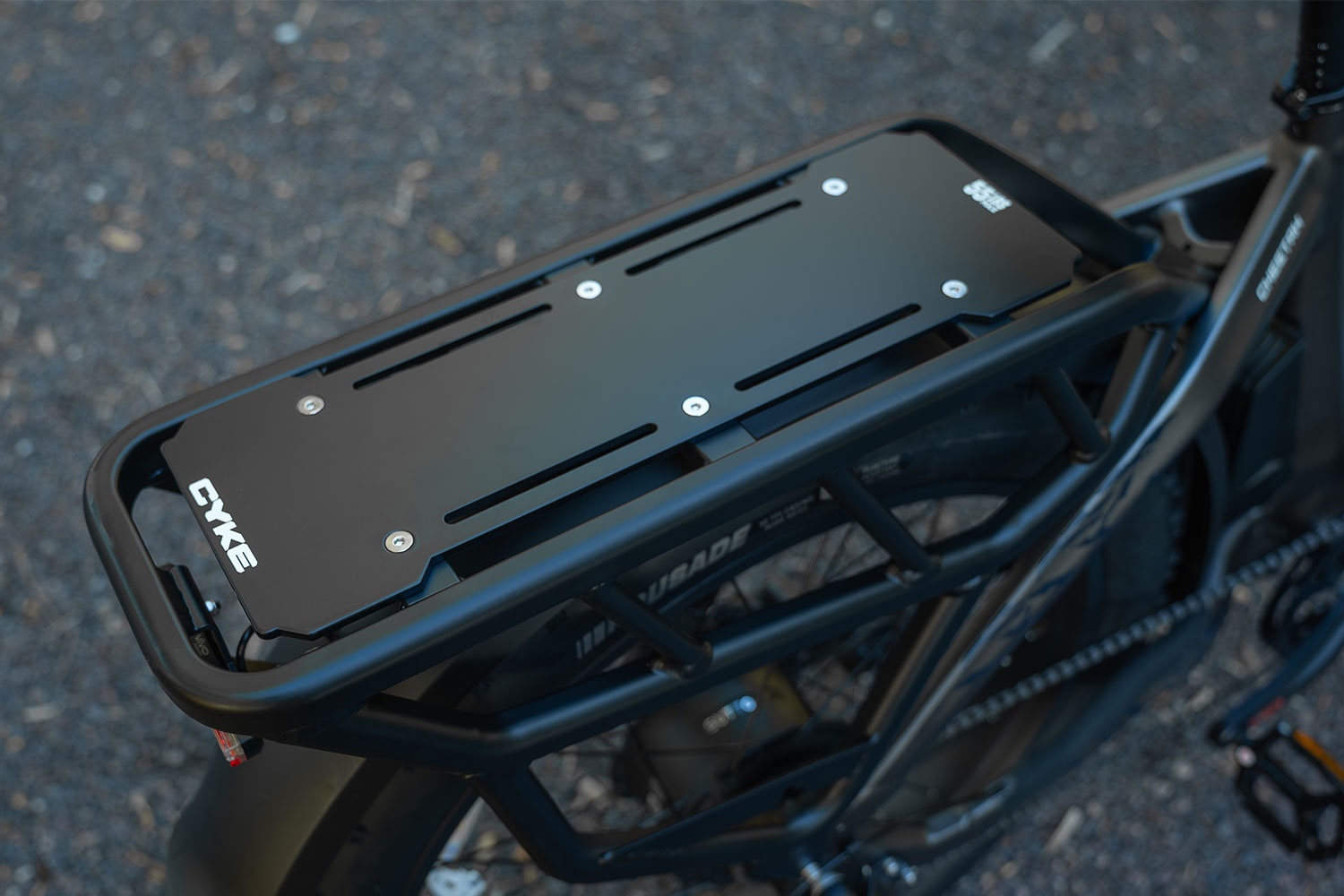

| Rear Rack |
Aluminum Alloy, 55 lbs Load Capacity |
| Fenders |
Front & rear fenders, Engineering Plastic |
| Kickstand |
Side Kickstand |
Weight
| Weight Limit |
450 lbs |
| Net Weight |
94.8 lbs |
| Gross Weight |
130.3 lbs |

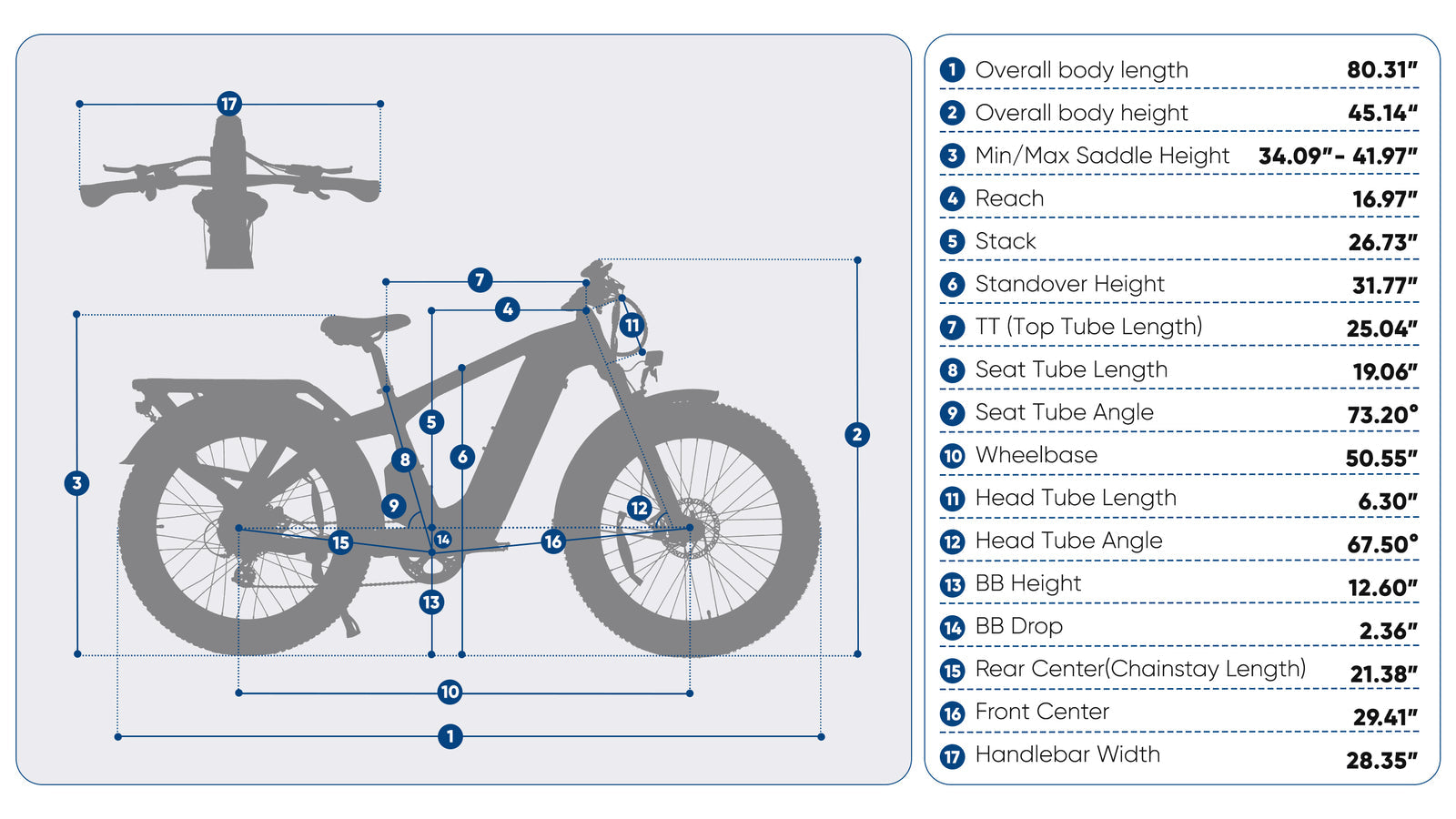

Size
| Bike Size |
80.31 x 28.35 x 45.14 in |
| Box Dimension |
67.0 x 12.6 x 34.9 in |
